type heat exchanger shell and tube water air for fruit and vegetables drying machines

FOB Reference Price:Get Latest Price
$100.00 - $10,000.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Liquid Flow Rate:
adjustable
Maximum Working Pressure:
3.0MPa
Weight:
customize
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
GELE
Model Number:
SZL
Structure:
Tube Heat Exchanger
Voltage:
no need
Dimension(L*W*H):
customized
Power(W):
no required
Certification:
CE, ISO9001
max working temperature:
300 degree
optional base tube material:
stainless steel, carbon steel, copper
optional fin material:
stainless steel, carbon steel, copper or aluminum
fin pitch:
10 pcs/inch or others
connector:
flanger and thread available
structure of heat exchanger:
fin tube structure, plate structure or tubular structure
hot sources:
hot water, cold water, steam or thermal oil or others
surface treatment:
galvanized zinc or silver powder or black powder or others
flow curcuit:
4 or 5 curcuit or others
After-sales Service Provided:
No overseas service provided
Warranty:
One Year
Supply Ability
Supply Ability:
2000 Unit/Units per Week
Packaging & Delivery
Packaging Details
standard export seaworthy iron box packing
Port
Guangzhou
Lead Time :
10-20 days after order confirmed

Refrigerator and Heater Parts Heating Exchange Coils & Air Cooler& Heat Exchanger& Industrial Radiator& Kiln Drier& Drying Machines& After Cooler

Product Description



Gele Main Product: Finned Tube Heat Exchanger



 Various kinds of finned tubes and spare parts for Finned Tube Heat Exchanger

1. Specification of Steel tube with extruded aluminum fin

Tube Size

Fin (OD)

Fin Height

Fin Thickness

Fins Distance

Φ18x2 mm

Φ38 mm

10 mm

0.45 mm

3 mm

Φ21x2 mm

Φ45 mm

12 mm

0.35 mm

3 mm

Φ21x2 mm

Φ51 mm

15 mm

0.35 mm

3 mm

Φ25x2 mm

Φ50 mm

12.5 mm

0.3 mm

3 mm

Φ25x2 mm

Φ55 mm

15 mm

0.3 mm

3 mm

Φ32x3 mm

Φ62 mm

15 mm

0.3 mm

3 mm

Other finned tube size can be customized.



  2. Specification of Steel tube with crimped steel fin

Tube Size

Fin (OD)

Fin Height

Fin Thickness

Fins Distance

Φ18x2 mm

Φ38 mm

10 mm

0.3 mm

4-5 mm

Φ21x2 mm

Φ45 mm

12 mm

0.3 mm

5-8 mm

Φ21x2 mm

Φ51 mm

15 mm

0.3 mm

5-8 mm

Φ25x2 mm

Φ50 mm

12.5 mm

0.3 mm

5-8 mm

Φ25x2 mm

Φ55 mm

15 mm

0.3 mm

5-8 mm

Φ32x3 mm

Φ62 mm

15 mm

0.3 mm

8-10 mm

Other finned tube size can be customized.

(Materials S/S 201, S/S 304, S/S 316 are optional)

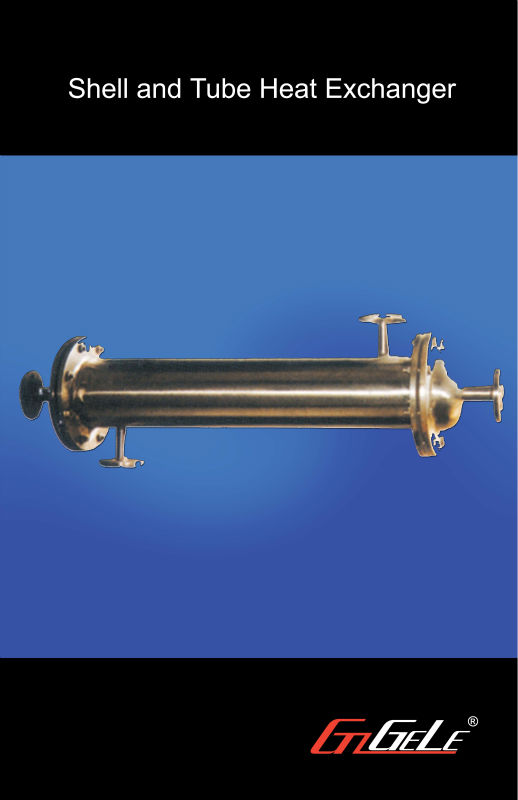

Gele other kinds of Heat Exchanger including shell and tube HE and alfa laval plate HE



Production Flow



Heat Exchanger manufacturing process in our factory

Company Information



About Guangzhou Gele Heat Energy Equipment Co., Ltd

Since in 2004, Gele has become the most trusted supplier of heat exchanging equipment in China. After ten years development, Gele has cooperated with people from more than 100 countries and regions, especially in Heat exchanger, board heat exchanger, fin tubes.

Gele Factory

You are welcome to visit our factory located in Baiyun district, where is very close to the Baiyun International Airport.

 We would like to show samples and manufacturing equipments of all kinds of heat exchangers and fin tubes to you.



Trade Shows



Gele company can also be seen in many exhibitions in different countries all over the world.





Our Services

We would like to provide best services for customers who bought our heat exchanger

Gele company has sales department to handle orders, production department to control the products line, quality control department to inspect and supervise the quality issue, service department to care customer’s shipping and after-sales service, financial department to care the payments and receipts. Please kindly see our procedures below.



 Pay terms for heat exchanger



 International shipping is available for customers





Certifications





FAQ

 1. Q: How long can we transport the goods ?

             a. Instock commodity: 1-5 days to pack and pass customer inspection.

             b. Non-stock commodity: 20days after payment.

2. Q: Can your company supply after-sales warranty?

    A: Yes, we can supply 1 year after-sales warranty against B/L date.

3. Q:  What payment terms can you accept?

    A:  We can accept L/C, T/T, etc.

4. Q: Can you accept customized order?

    A: Yes, we accept, we have very professional technical group who can design the special products according to your basic parameter/ data sheet/ drawings or sample.

5. Q:  Do you have your own factory or just you are a trading company?

    A: We have our own factory in Foshan city Guangdong province and very welcome to visit our factory.

6. Q: Is OEM order acceptable to your company?

    A: OEM is OK.

For more detailed information, welcome to send us an inquiry, we will serve you our best service within 48 hours, for urgent requirements and questions, pls feel free to contact me by skype: shrieklin
